BRG-100RH.F. X-Ray Generator
BRG-100

Description

BRG-100 is a R/F generator available in two versions and different power ratings, feauturing:

  • Programmable using GenWare™ Service Software or the operator console
  • Operating Modes: kV/AEC, kV/mAs, kV/mA/Time
  • Output frequency in excess of 100 kHz +
  • 32- 40 - 50 - 65 - 80 and 100kW power levels
  • Compatibility with both digital and conventional radiographic systems
  • 1 or 2 tube operation
  • 150 kV standard

Contact us for the complete option list.

CSQ CECSQMED

Technical Features

    32 42 50 65 80 100
RADIOGRAPHY Power kW 32 42 50 65 80 100
  Range kV 40-150 40-150 40-150 40-150 40-150 40-150
  Range mA 10-400 10-500 10-630 10-800 10-1k 10-1k
  Range mAs 0.5-630 0.5-630 0.5-1k 0.5-1k 0.5-1k 0.5-1k
  Time range ms 1-6.3 1-6.3 1-6.3 1-6.3 1-6.3 1-6.3
  APR (exams) 768 768 768 768 768 768

FLUOROSCOPY Range kV - 40-125 40-125 40-125 40-125 40-125
  Range mA - 0.5-6 0.5-6 0.5-6 0.5-6 0.5-6
  Technique selection 3-2-1 pts 3-2-1 pts 3-2-1 pts 3-2-1 pts 3-2-1 pts 3-2-1 pts

CONSOLE Touch Screen optional optional optional optional optional optional


More Pictures

Brg100RfConsolleMed

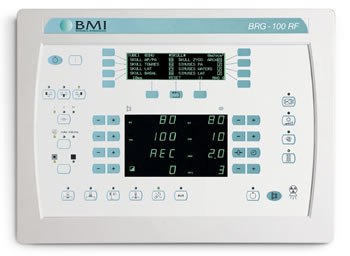

Close-up on BRG-100RF console

Brg100RfConsolleLit Brg100RConsolleLit Brg100RTouchScreenLit
