BRG-200RH.F. X-Ray Generator
Description
BRG-200R models are a true 100 kHz + (RAD only) X-Ray generators which can guarantee the best price/performance ratio among their market competitors.
These models are a cost-effective solution for most radiographic applications (medical clinics, chiropratic and veterinary) representing the compact, light-weight and low cost choice.
Main features are:
- State-of-the-art 100kHz + FET-based swtiching technology
- Anatomical programs available in several languages
- Maximized image quality by providing low ripple power supply.
- Radiographic kV: 125kV (standard) & 150kV (optional).
- Automatic Exposure Control (AEC), optional and automatic Tube Calibration.
- Available power: 30 kW (single phase), 32, 40 and 50 kW (triple phase).
 |
 |  |
Technical Features
| 30kW | 32kW | 40kW | 50kW | ||||
| RADIOGRAPHY | Generator type | H.F. 100kHz | H.F. 100kHz | H.F. 100kHz | H.F. 100kHz | ||
| Range kV | 40 - 125* | 40 - 125* | 40 - 125* | 40 - 125* | |||
| Range mA | 25 - 400 | 25 - 400 | 25 - 500 | 25 - 600 | |||
| Range mAs | 0.4 - 500 | 0.4 - 500 | 0.4 - 500 | 0.4 - 500 | |||
| Time range | 1ms - 6.3s | 1ms - 6.3s | 1ms - 6.3s | 1ms - 6.3s | |||
| APR | 768 | 768 | 768 | 768 | |||
| Technique selction | 3-2-1 points | 3-2-1 points | 3-2-1 points | 3-2-1 points | |||
| Power supply | 1 phase | 3 phase | 3 phase | 3 phase | |||
| * 150kV also available and provided on request. | |||||||
More Pictures

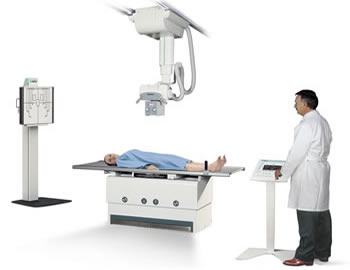

Rad room with BRG-200R
