BRT-20Universal Remote Controlled Table
Description
Advanced design, proven reliability, high quality-to-price relation for an outstanding unit. BRT-20 is engineered to fully comply with the high standards of modern diagnostic imaging.
Here below you can find the main features of this equipment:
- Microprocessor controls
- 30° Trendelemburg
- Compact and light
- Easy and quick installation
- Minimum maintenance requirements
- Comprehensive Spot Film Device program
- Preset for Digital Imaging System
- Complete X-ray coverage of the patient
- Total accessibility to the patient from any side
- Electronic homothetic tomography
- Variable focus-film distance
- Improved imaging with I.I. vertical adjustment
- Extended longitudinal travel of column and table top
- Basin shaped wooden or carbon fiber table top
 |
 |  |
Technical Features
| EXAMINATION TABLE | Tilting angles | 90 / 30° |
| Simultaneous movements | - Tilting - Longitudinal stand travel - Tabletop travel - Stand incidences |
|
| TABLE TOP | Dimensions | 210 x 74 cm |
| Lateral displacement travel | 34 cm | |
| Longitudinal displacement travel | ±47.5 cm opt. | |
| STAND | Focus-film distance | from 115 to 150 cm |
| Longitudinal incidences | ±40° | |
| Tube rotation | -18°/+180° | |
| SPOT FILM DEVICE | Vertical divisions | 1 - 2 - 3 - 4 on all formats |
| Maximum applicable image intensifier | 40 cm | |
| Tabletop-intensifier distance | 138 mm | |
More Pictures

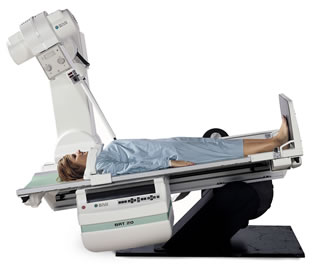

BRT-20 30° Trendelemburg example
 |
 |
 |
 |
 |
