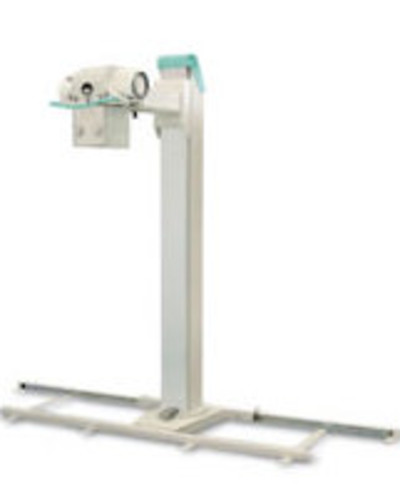

BCL-TARotating Column Stand
Description
Easy-to-install column stand sliding on floor rails with locking in any position. ±180° rotation around the vertical axis with mechanical detents every 90° and mechanical locking/unlocking foot pedal at the column base. Height adjustable, counterbalanced tube supporting arm, provided with telescopic movement. ±180° tube rotation around the horizontal axis. Electromagnetic braking of all movements, with luminous control pushbuttons conveniently available near the handgrips. Very short 365 mm focus-floor distance to allow exposures of the lower extremities when used with a Wall Bucky stand.
 |
 |  |
Technical Features
| TECHNICAL DATA | Column height | 2275 mm |
| Floor rails length | 2800 mm | |
| Longitudinal travel | 1900 mm (± 950 mm) | |
| Vertical travel | 1620 mm | |
| Focus floor distance | variable from 365 to 1985 mm | |
| Telescopic travel tube supporting arm | 200 mm (± 100 mm) with mechanical detent of the central position | |
| Column stand rotation | ±180° with mechanical detents every 90° and locks released by foot pedal | |
| X-ray tube rotation | ± 180° with mechanical detents ± 90° and angle indication by a goniometer | |
| Electromagnetic brakes for the longitudinal and vertical movements of the column stand, the X-ray tube rotation and the telescopic movement of the tube supporting arm | ||
| Multi-leaves light beam collimator with retractable meter for FFD indication | ||
| Weight | 220 Kg(column stand, rails, X-ray tube and collimator) | |
| Power supply | 24 V.DC, 6 Amax | |
